Application range and structure:
Changjia ACF type activated carbon fibre adsorption device has advantages such as large specific surface area, moderate pore size, uniform distribution, fast speed, less impurities, convenient replacement, and etc. and it is widely used in remove odor and purify the air.
.jpg)

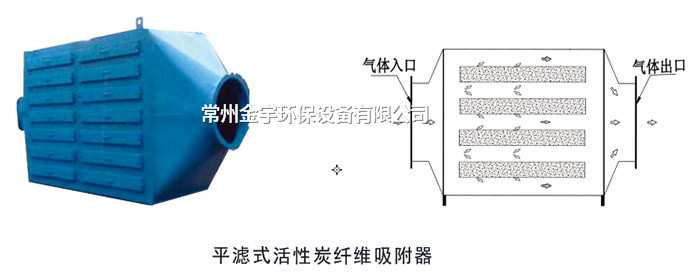

Specifications and technical parameters (flat filter type):
|
Specifications
Models |
Exhaust gas treatment capacity |
Adsorption form of activated carbon fibre |
Specifications (mm) |
Diameter of air hose |
Number of filter drawers |
|
ACF-1 |
2000 |
Penetrating adsorption |
1100×700×1100 |
200 |
2 |
|
ACF-2 |
3000 |
Penetrating adsorption |
1200×800×1100 |
200 |
2 |
|
ACF-3 |
4000 |
Penetrating adsorption |
1300×900×1100 |
250 |
4 |
|
ACF-4 |
6000 |
Penetrating adsorption |
1800×1000×1400 |
250 |
4 |
|
ACF-5 |
8000 |
Penetrating adsorption |
2200×1200×1600 |
300 |
8 |
|
ACF-6 |
10000 |
Penetrating adsorption |
2400×1400×1800 |
400 |
8 |
|
ACF-7 |
13000 |
Penetrating adsorption |
2600×1600×2000 |
500 |
10 |
|
ACF-8 |
16000 |
Penetrating adsorption |
2600×1850×2200 |
600 |
10 |
|
ACF-9
|
20000
|
Penetrating adsorption
|
2900×1850×2200
|
1000
|
12
|
|
ACF-10
|
25000
|
Penetrating adsorption
|
3100×2050×2400
|
1200
|
12
|

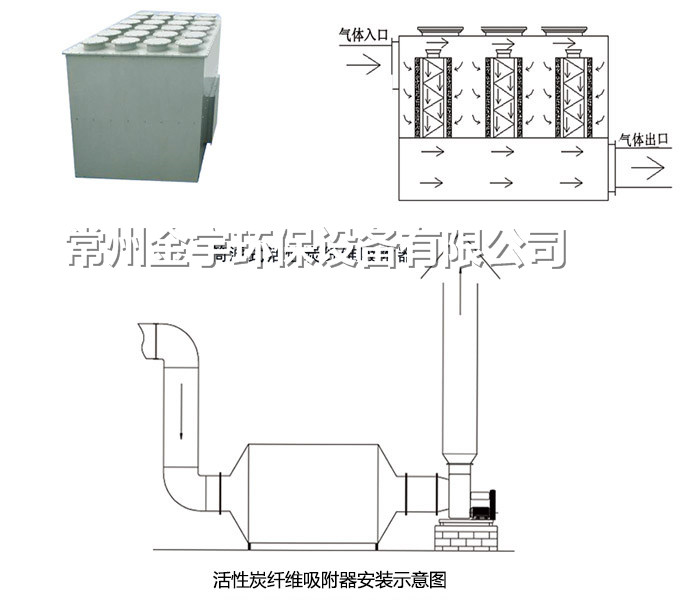

Specifications and technical parameters (cartridge filter type):
|
Specifications
Models |
Exhaust gas treatment capacity |
Adsorption form of activated carbon fibre |
Specifications (mm) |
Diameter of air hose |
Number of cartridges |
|
ACF-1 |
2000 |
Penetrating adsorption |
1540×600×1800 |
200 |
3 |
|
ACF-2 |
3000 |
Penetrating adsorption |
1070×1070×1800 |
200 |
4 |
|
ACF-3 |
4000 |
Penetrating adsorption |
1580×1070×1800 |
250 |
6 |
|
ACF-4 |
6000 |
Penetrating adsorption |
2090×1070×1800 |
250 |
8 |
|
ACF-5 |
8000 |
Penetrating adsorption |
2090×1580×1800 |
300 |
12 |
|
ACF-6 |
10000 |
Penetrating adsorption |
2600×1580×1800 |
400 |
15 |
|
ACF-7 |
13000 |
Penetrating adsorption |
2600×2100×1800 |
500 |
20 |
|
ACF-8 |
16000 |
Penetrating adsorption |
3100×2100×1800 |
600 |
24 |
|
ACF-9
|
20000
|
Penetrating adsorption
|
3500×2600×1800
|
1000
|
30
|
|
ACF-10
|
25000
|
Penetrating adsorption
|
3700×2600×1800
|
1200
|
35
|
