Plastic vacuum suction filter

Application range and structure:：

Changjia (PVC and RPP) vacuum suction filter is mainly used in chemical, pharmaceutical, petroleum, pesticide, environmental protection, and other industries.

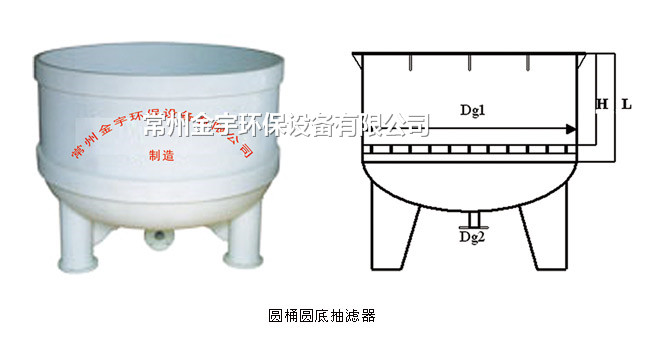

Specifications and technical parameters (round bottom):

Volume L	Dgl mm	L mm	Filtration pore mm	H mm	Dg2 mm	Volume L	Dg1 mm	L mm	Filtration pore mm	H mm	Dg2 mm
100	600	450	8	400	25	1000	1400	750	10	750	50
200	700	550	8	500	25	1500	1600	850	12	800	50
300	800	650	8	600	40	2000	1800	850	12	800	50
500	1000	700	10	650	40	2500	2000	850	14	800	65
800	1200	750	10	700	40	3000	2200	850	14	800	65

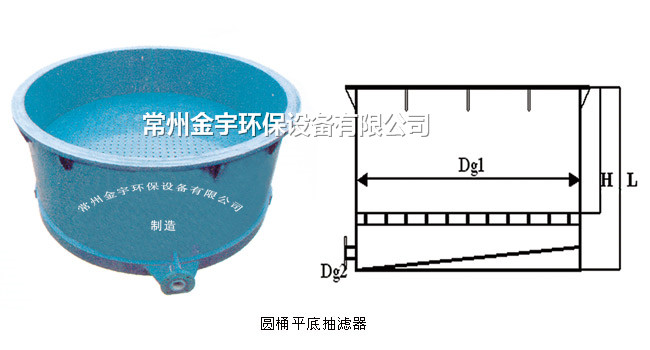

Specifications and technical parameters (flat bottom):

Volume L	Dgl mm	L mm	Filtration pore mm	H mm	Dg2 mm	Volume L	Dgl mm	L mm	Filtration pore mm	H mm	Dg2 mm
100	600	550	8	400	25	1000	1300	900	10	750	50
200	700	650	8	500	25	1500	1600	950	12	800	50
300	800	750	8	600	40	2000	1800	950	12	800	50
500	1000	800	10	650	40	2500	2000	950	14	800	65
800	1200	850	10	700	40	3000	2200	950	14	800	65
